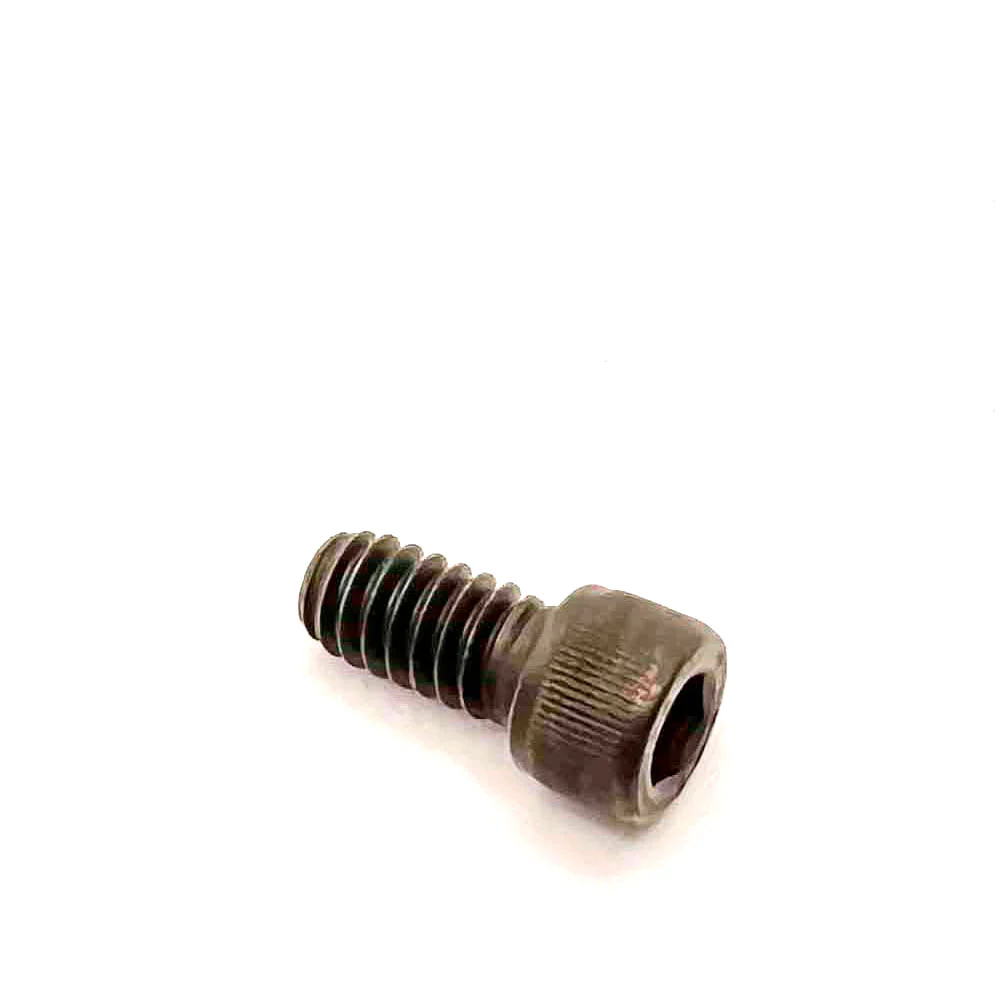

-64%1/4-20 x 1/2in UNC Socket Cap Screw—
$0.11
$0.04The Story
Commonly referred to as an Allen Bolt, this socket cap screw is an externally threaded fastener with unified threads, a cylindrical head with a flat chamfered top surface, knurled cylindrical sides and hexagonal recess. Ideal for precision assembly work with close tolerances and applications needing a well tooled appearance. Provides greater tensile strength than equivalent sizes in hex cap screws while requiring less surface area. Made from alloy steel that conforms to the following chemical composition: 0.31% of Carbon, max of 0.04% Phosphorus, max of 0.045% Sulfur. Tensile Strength of 180,000 PSI and Yield Strength of 162,000. SCS1412C
Description
Commonly referred to as an Allen Bolt, this socket cap screw is an externally threaded fastener with unified threads, a cylindrical head with a flat chamfered top surface, knurled cylindrical sides and hexagonal recess. Ideal for precision assembly work with close tolerances and applications needing a well tooled appearance. Provides greater tensile strength than equivalent sizes in hex cap screws while requiring less surface area. Made from alloy steel that conforms to the following chemical composition: 0.31% of Carbon, max of 0.04% Phosphorus, max of 0.045% Sulfur. Tensile Strength of 180,000 PSI and Yield Strength of 162,000. SCS1412C
