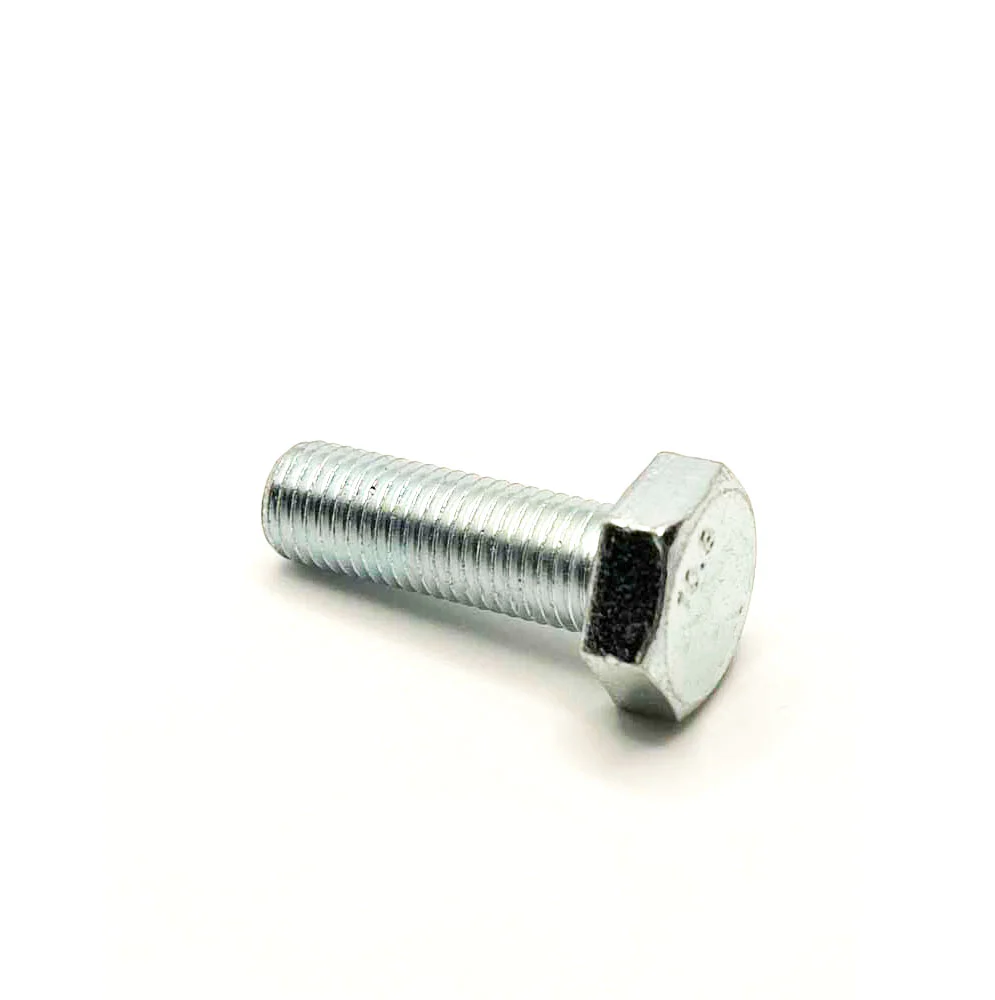

M10-1.25 x 20mm Class 10.9 Hex Cap Screw DIN 961 Full Thread
HomeStore

M10-1.25 x 20mm Class 10.9 Hex Cap Screw DIN 961 Full Thread

M10-1.25 x 20mm Class 10.9 Hex Cap Screw DIN 961 Full Thread

$0.40

Original: $1.13

-65%
M10-1.25 x 20mm Class 10.9 Hex Cap Screw DIN 961 Full Thread—

$1.13

$0.40

The Story

Fully threaded, this metric thread Class 10 bolt is made from medium carbon alloy steel and is most similar (but not exact) to U.S. Standard Grade 8 cap screws. These shall be heat treated by quenching in oil from above the transformation temperature and reheating to a tempering temperature pf 425 degrees (C). Proof Load is a minimum of 940 square N/mm with a tensile strength of a minimum of 1040 square N/mm. MCS1020MFZ109

Description

Fully threaded, this metric thread Class 10 bolt is made from medium carbon alloy steel and is most similar (but not exact) to U.S. Standard Grade 8 cap screws. These shall be heat treated by quenching in oil from above the transformation temperature and reheating to a tempering temperature pf 425 degrees (C). Proof Load is a minimum of 940 square N/mm with a tensile strength of a minimum of 1040 square N/mm. MCS1020MFZ109
